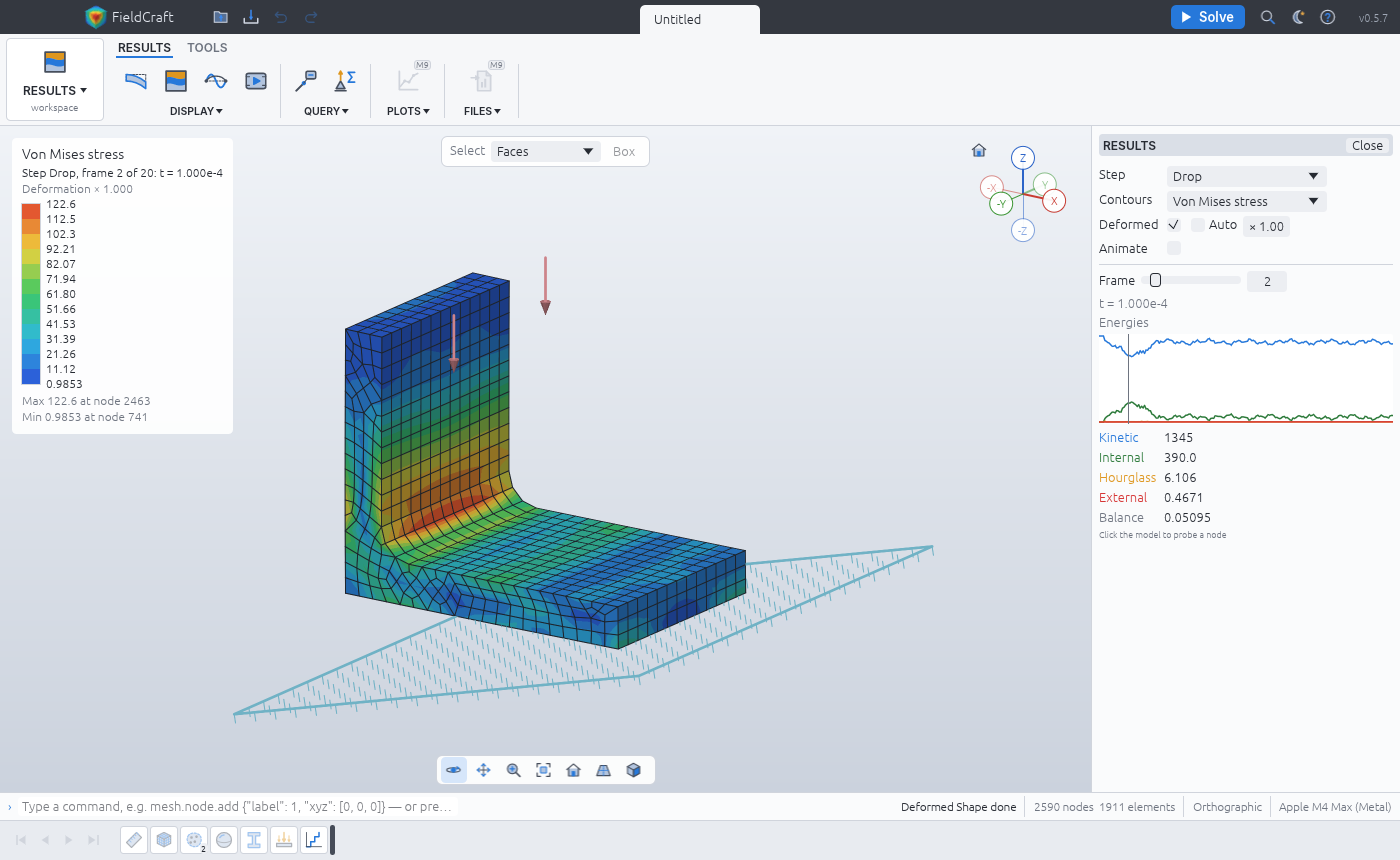

jyvikoandClaude Opus 5.5 581646bdac engine: drop-test sample, an aluminium bracket dropped onto a tilted floor ...

file.sample drop-test: an L-bracket standing on its foot (a SolidCraft script
in sample.rs) swept into hex8, falling 2 m onto a rigid floor tilted 15 deg;
explicit dynamics for 1 ms with gravity and plasticity. Its test checks the
mass against rho V, the impact speed sqrt(2 g h) and kinetic energy, the
energy balance and the momentum the floor takes. docs/examples.md starts
with it, and its picture is docs/media/examples/drop-test.png.

Closes #162

Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>
Claude-Session: https://claude.ai/code/session_01UhhZMBTviDQxZvwnyP89fo

2026-10-14 15:55:22 -04:00

239 KiB

1400x860px

Raw Permalink History
